Plastic packaging

Containers

Wide-neck pharma and FMCG containers from 20 ml to 1000 ml — tablet and powder jars with tear-off lids, safety caps with induction liner, and non-threaded lids. HDPE, LDPE and PP.

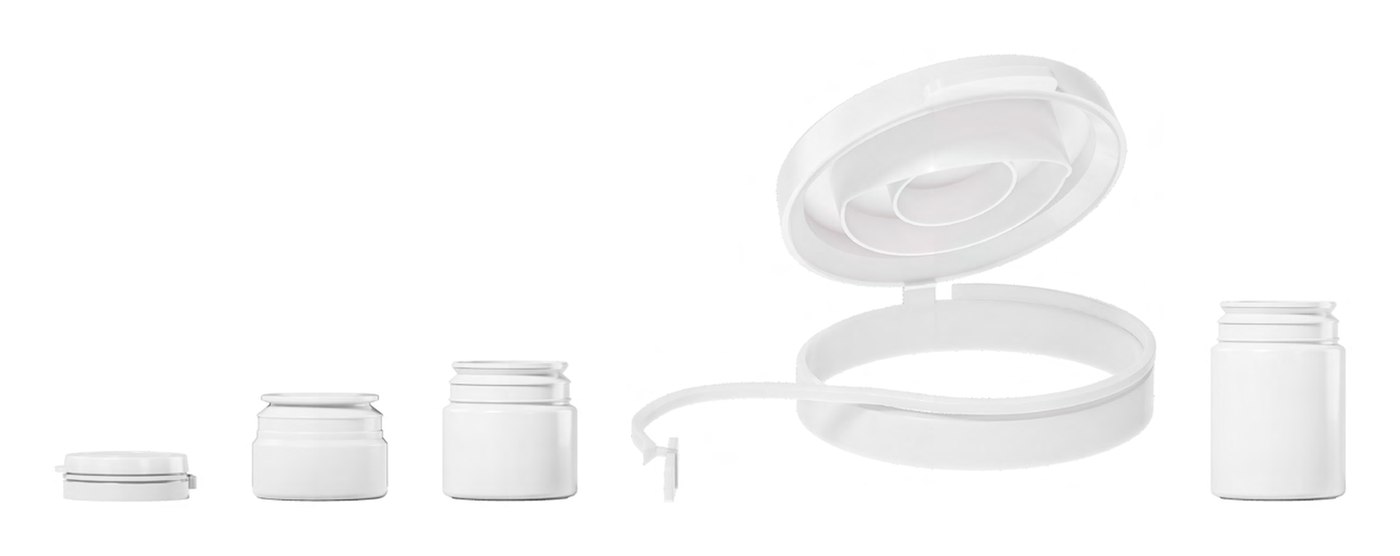

Cap Line S

20–75 ml

Pharma containers with tear-off lid

W0500 · 20 ml HDPELDPEPP

W0068 · 45 ml HDPELDPEPP

W0067 · 75 ml HDPELDPEPP

Caps & closures

W0080 Tear-off lid LDPE4.5 g

Cap Line S · Specifications
Index	W0500	W0068	W0067
Capacity (ml)	20	45	75
Thread	latch	latch	latch
Height H (mm)	34	45	65
Fill height h (mm)	-	-	-
Diameter D (mm)	45	45	45
Neck d (mm)	43	43	43
Weight (g)	6	4.5	8.5

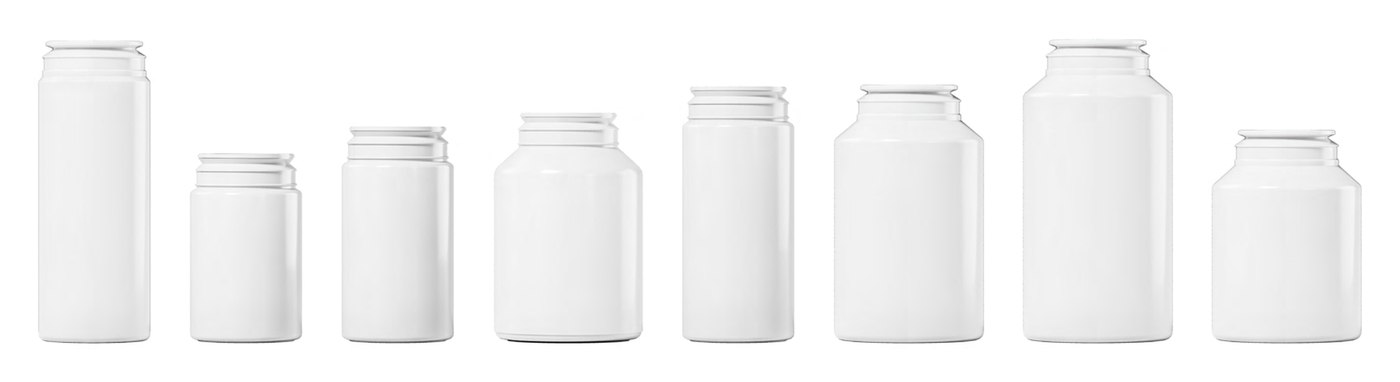

Cap Line M

85–250 ml

Pharma containers with tear-off lid

W0066 · 85 ml HDPELDPEPP

W0065 · 100 ml HDPELDPEPP

W0064 · 125 ml HDPELDPEPP

W0502 · 150 ml (short) HDPELDPEPP

W0501 · 150 ml (tall) HDPELDPEPP

W0063 · 180 ml HDPELDPEPP

W0503 · 200 ml HDPELDPEPP

W0504 · 250 ml HDPELDPEPP

Caps & closures

W0080 Tear-off lid LDPE4.5 g

Cap Line M · Specifications
Index	W0066	W0065	W0064	W0502	W0501	W0063	W0503	W0504
Capacity (ml)	85	100	125	150	150	180	200	250
Thread	latch	latch	latch	latch	latch	latch	latch	latch
Height H (mm)	45	65	75	84	120	65	102	120
Fill height h (mm)	-	-	-	-	-	-	-	-
Diameter D (mm)	45	45	45	60	45	60	60	60
Neck d (mm)	43	43	43	43	43	43	43	43
Weight (g)	9.5	10.5	13.75	17	17	16.5	20	22

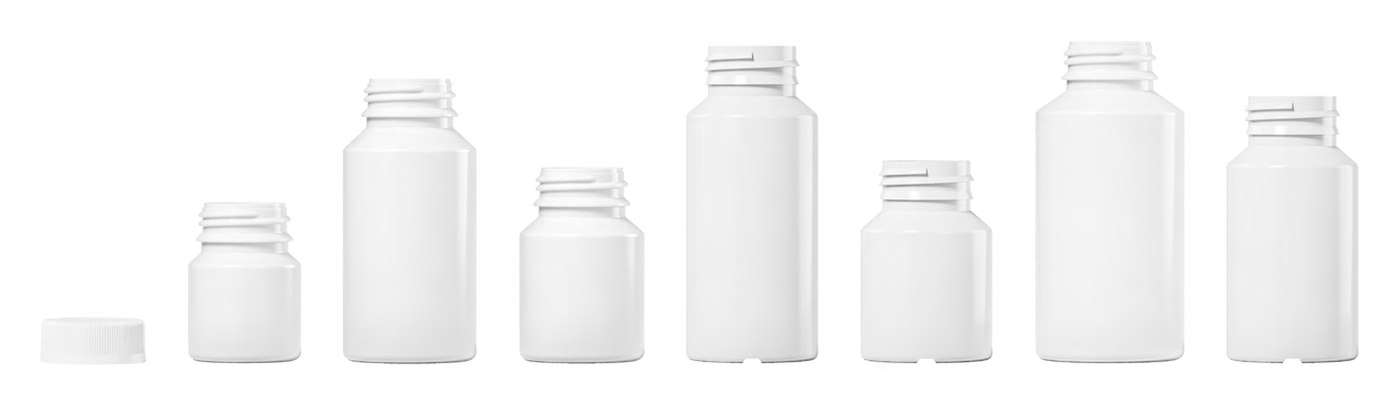

Spiral Line Edge

30–200 ml

Pharma containers with safety cap & induction liner

W0519 · 30 ml HDPELDPEPP

W0520 · 50 ml HDPELDPEPP

W0070/A · 60 ml HDPELDPEPP

W0069/A · 90 ml HDPELDPEPP

W0521 · 100 ml HDPELDPEPP

W0071/A · 120 ml HDPELDPEPP

W0522 · 150 ml HDPELDPEPP

W0523 · 200 ml HDPELDPEPP

Caps & closures

W0100/A Safety cap with induction liner LDPE6.5 g

Spiral Line Edge · Specifications
Index	W0519	W0520	W0070/A	W0069/A	W0521	W0071/A	W0522	W0523
Capacity (ml)	30	50	60	90	100	120	150	200
Thread	3	3	3	3	3	3	3	3
Height H (mm)	53	54	68	90	95	107	107	120
Fill height h (mm)	32	43	43	45	71	83	83	96
Diameter D (mm)	38	42	45	45	45	45	50	54
Neck d (mm)	32	32	32	32	32	32	32	32
Weight (g)	7 ±1.0	9 ±1.0	10.5	13.5	14 ±1.2	16.5	17 ±1.4	20 ±1.5

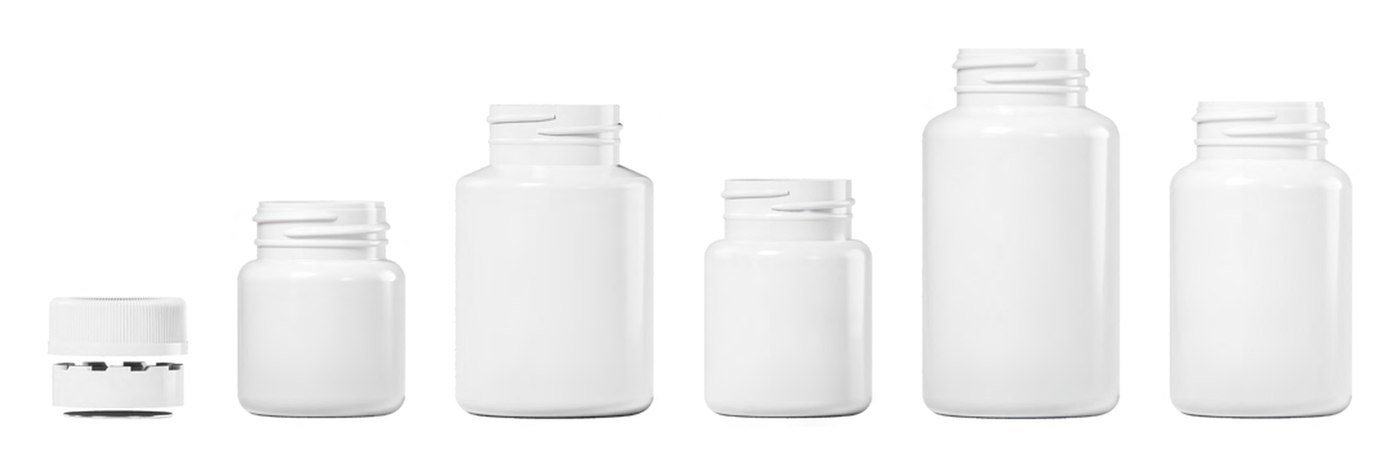

Spiral Line Soft

50–150 ml

Pharma containers with safety cap & induction liner

W0524 · 50 ml HDPELDPEPP

W0072/A · 60 ml HDPELDPEPP

W0525 · 100 ml HDPELDPEPP

W0073/A · 120 ml HDPELDPEPP

W0526 · 150 ml HDPELDPEPP

Caps & closures

W8024 Safety cap with induction liner HDPE8.2 g

Spiral Line Soft · Specifications
Index	W0524	W0072/A	W0525	W0073/A	W0526
Capacity (ml)	50	60	100	120	150
Thread	3.5	3.5	3.5	3.5	3.5
Height H (mm)	57	63	84	84	98
Fill height h (mm)	39	46	64	64	77
Diameter D (mm)	45	45	49	53	53
Neck d (mm)	36	36	36	36	36
Weight (g)	9 ±1.0	10	14 ±1.2	14.5	17 ±1.4

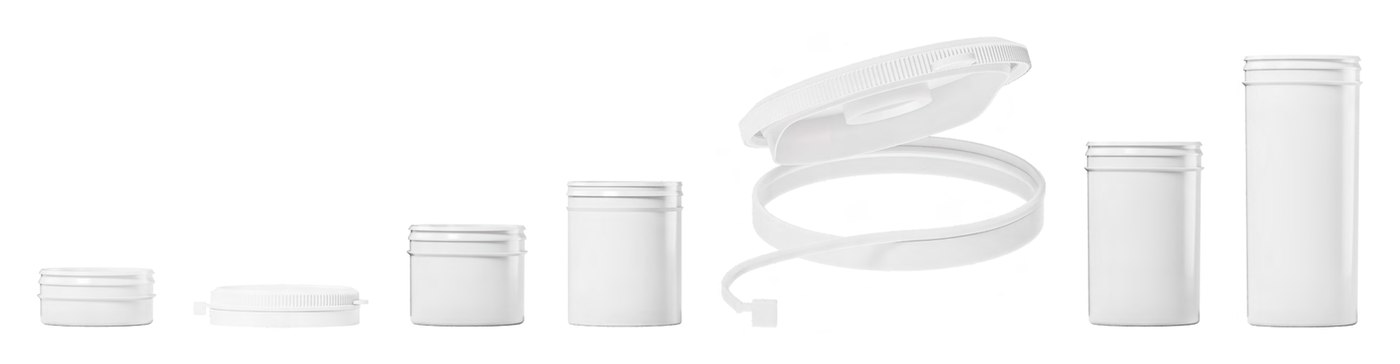

Cap Line

50–300 ml

Pharma / FMCG containers with tear-off lid

W0515 · 50 ml HDPELDPEPP

W0516 · 100 ml HDPELDPEPP

W0470 · 160 ml HDPELDPEPP

W0517 · 200 ml HDPELDPEPP

W0518 · 300 ml HDPELDPEPP

Caps & closures

W0468 Tear-off lid LDPE6.7 g

Cap Line · Specifications
Index	W0515	W0516	W0470	W0517	W0518
Capacity (ml)	50	100	160	200	300
Thread	latch	latch	latch	latch	latch
Height H (mm)	28	50	75	93	137
Fill height h (mm)	-	-	-	-	-
Diameter D (mm)	61	61	61	61	61
Neck d (mm)	60	60	60	60	60
Weight (g)	11.3	16.5	20.5	26.5	36.5

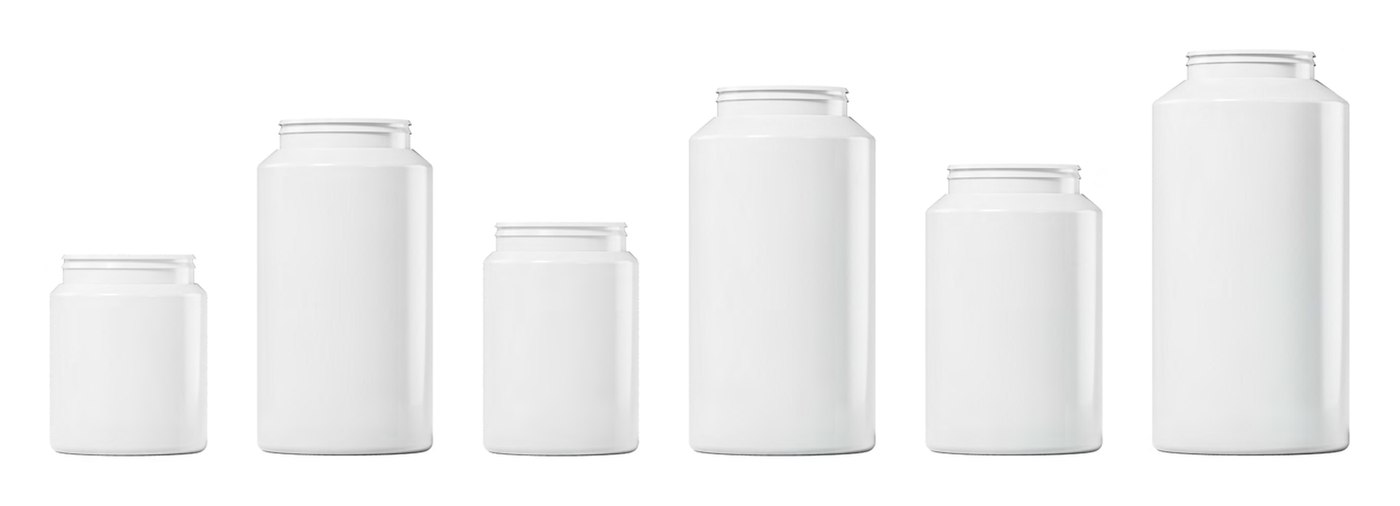

Cap Line Edge

250–1000 ml

Large pharma / FMCG containers with tear-off lid

W0494 · 250 ml HDPELDPEPP

W0495 · 300 ml HDPELDPEPP

W0496 · 500 ml HDPELDPEPP

W0497 · 600 ml HDPELDPEPP

W0498 · 750 ml HDPELDPEPP

W0499 · 1000 ml HDPELDPEPP

Caps & closures

W0468 Tear-off lid LDPE6.7 g

Cap Line Edge · Specifications
Index	W0494	W0495	W0496	W0497	W0498	W0499
Capacity (ml)	250	300	500	600	750	1000
Thread	latch	latch	latch	latch	latch	latch
Height H (mm)	88	103	128	148	163	183
Fill height h (mm)	-	-	-	-	-	-
Diameter D (mm)	70	70	79	79	84	91
Neck d (mm)	60	60	60	60	60	60
Weight (g)	22	25	35	40	47	56

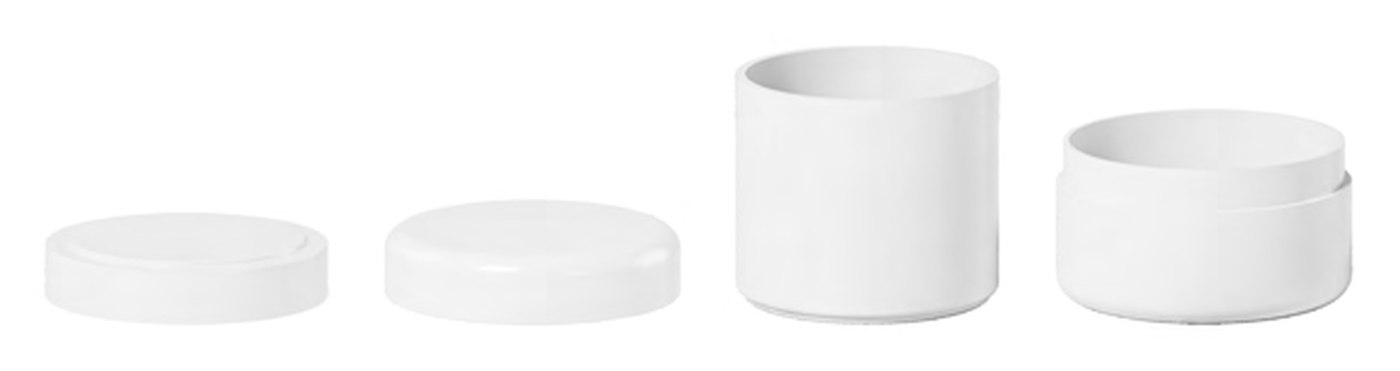

Cap Line — non-threaded

20 ml

Pharma / FMCG boxes with non-threaded lid

W0074 · 20 ml (box with lid) PPHDPELDPE

W0076 · 20 ml (box with lid) PPHDPELDPE

Caps & closures

W0075 Non-threaded lid PPHDPELDPE2 g

W0077 Non-threaded lid PPHDPELDPE2.2 g

Cap Line — non-threaded · Specifications
Index	W0074	W0076
Capacity (ml)	20	20
Thread	3.5	3.5
Height H (mm)	31	22
Fill height h (mm)	-	-
Diameter D (mm)	31	41
Neck d (mm)	36	41
Weight (g)	4.3	4.6

Made to your spec. Available in any colour of your choice. Other variants and prototyping available on request.

Need the container and the label together?

Tell us the product, the volume and the market — we'll match a construction, a closure and the label that runs on your line, and come back with a price.

Send us an inquiry
